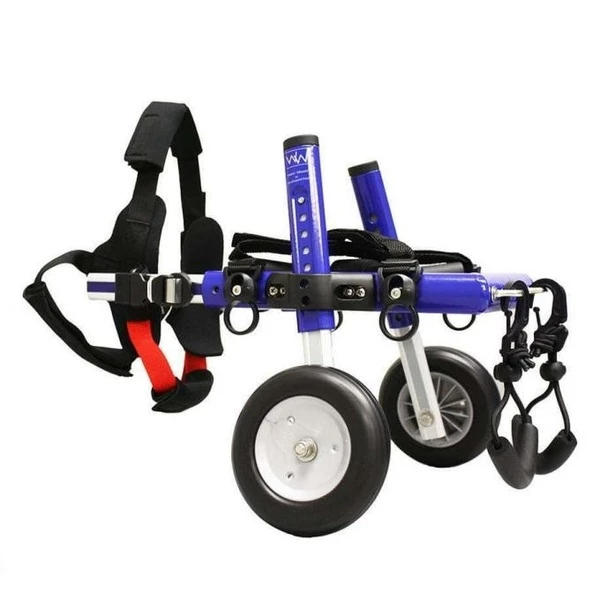

WALKIN' PETS Wheels SMALL Dog Wheelchair

Product Introduction

Product Features & Benefits

․ Only two measurements required.

․ Fully adjustable in height, length, and width.

․ Fits pets weighing from 11 to 25 pounds (weight determines correct wheelchair frame size).

․ Wheelchair Frame made of durable, lightweight extruded aluminum.

․ Typically ships same day, overnight and international shipping available.

․ Fits small breeds: Miniature Poodle, Dachshund, Pekingese, Maltese, Bichon Frise, Jack Russell Terrier, Miniature Schnauzer, King Charles Cavalier Spaniel, Pug, French Bulldog, Shih Tzu, Boston Terrier, Wire Fox Terrier, Miniature Pinscher.

What's in the mini Doxie box?

Product Specifications

Frame:

The frame is blue, camo, seafoam, or pink powder-coated aluminum. It will not bend, break, or rust. Black knuckles are on each side of the frame, which hold the leg of the wheelchair to the frame. The wheels/struts will be inserted into the leg and adjusted to the proper height. The knuckle has a high and low setting which can be adjusted with a Phillips screwdriver.

Width Connectors:

Your wheelchair will come with two width connectors (7″ and 4″). One is already installed in the back of your cart. If you need more width, the wheelchair comes equipped with a longer connector in the box.

Length Extenders:

Your wheelchair will come with two extenders (side rails) installed, which determine the length of your dog. The length of the extender should end in the middle of the dog’s front leg. It should not pass the front leg.

The Front Harness:

The dog’s head goes between the blue and black straps. The red strap goes under the dog’s front legs and clips on the side of the harness. The shoulder pads are made of neoprene and keep the straps and buckles from causing discomfort for the dog. Neoprene comfort sleeves wrap around the straps for the dog’s comfort. Comfort sleeves can be cut in half if they are too long.

Leg Rings:

The dog’s hindquarters are held in place by the leg rings, or our rear harness support system. The leg rings can also be used as a lifting harness when out of the wheelchair; the excess strapping can be touch-fastened together to make handles on each side.

Wheels & Struts:

The wheels are attached to a metal piece called a “strut.” Four-inch foam wheels come standard, which are great for all terrains. They feature a dense foam interior with an outer rubber layer. These wheels will not puncture, wear extremely well, and are easy to clean. Eight-inch wheels are also available, depending on dog’s measurements.

Belly Belt:

The Belly Belt will help support your dog’s back. It is not always necessary to use the belly belt, but is highly recommended for dogs with a long back, overweight or elderly dogs, dogs with curvature of the spine, and dogs with disc problems.

Stirrups:

Stirrups are used to hold the dog’s legs off the ground so they don’t drag due to paralysis, knuckling under, or foot injuries. The adjustable stirrups are positioned to hold the foot up at the hock. If your dog doesn’t need them, the stirrups may be removed from the wheelchair.

The Manual:

The manual gives instructions and tips on assembling and using the Walkin’ Wheels Wheelchair.

Tool Kit:

The tool kit comes in a plastic bag and includes and Allen wrench and set screws. The (optional) set screws may be used to tighten up the wheelchair frame and reduce flexibility, depending on your preference.

How to Choose the Right Size

Apply to

Dog
